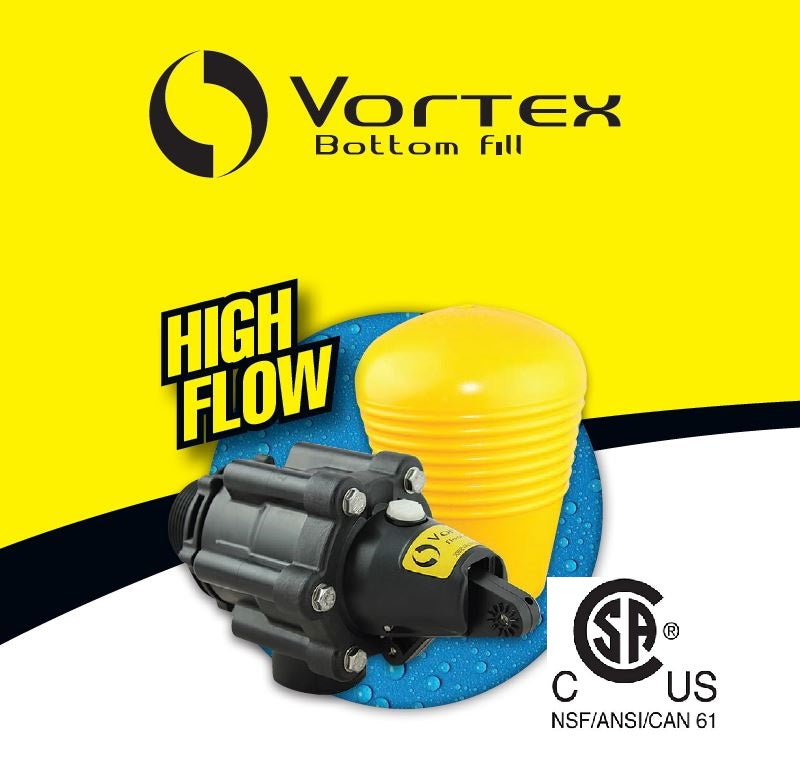

Jobe Valves Vortex Bottom Fill Float Valve

Jobe Valves, Vortex Bottom Fill Float Valve.

Description

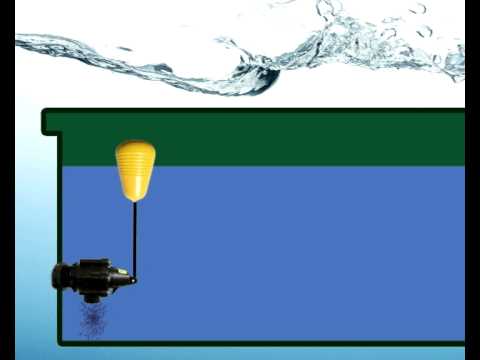

The Vortex Bottom Fill float valve is a float operated valves for use in automatic filling of water troughs. The valve is configured for underwater mounting only. The float is connected to the valve with a nylon cord, this operates a pilot valve, when the water level drops, the pilot valve is opened and the main diaphragm valve is activated. Vortex is a good choice where its high flow, compact, robust, non corrosive construction is beneficial.

Applications
Maintaining water levels in:
• Animal drinking troughs
• Water storage tanks

Features
• High flow
• Compact robust construction
• Mounts horizontally or vertically
• Made from corrosion resistant materials
• Valve unscrews from tail for easy Valve seal access
• Shuts down slowly to minimize water hammer
• 20 - 60mm (¾” - 2 ½”) water level differential (increases as water inlet pressure increases)
• Pressure rating 0.3 - 7 Bar (5 - 100 PSI)
• Float position easily adjustable with no tools
• Valve has switch to lock it in off position
• Has port to connect Frostpro anti freeze device

Selecting the right inlet size:

Selecting the right size inlet is very important to the performance of your float valve. The inlet of the float valve should match your supply plumbing. For instance if your supply plumbing is 1" you will get no better performance from a 2" valve. Your flow rate will always be limited by the smallest pipe. Always match your float valve inlet size to your water supply pipe size. If you intend on upgrading your water supply plumbing at some point you can always purchase a different tail. More information below.

Vortex Float Valve Tails.

Warranty information
Jobe valves will replace or repair product that fails due to faulty parts or manufacturing for 2 years from dated proof of purchase. Jobe Valves does not accept any liability whatsoever for any consequential damage caused, or associated costs involved, in the malfunction or in the replacing or repairing of any Jobe product.

For more information on the Jobe Valves Vortex Bottom Fill float valve you can review the Information sheet here.

To see the entire Jobe Valves Vortex product family click here.
