Jobe Valves Topaz Compact Float Valve

Jobe Valves, Topaz Compact Float Valve.

Description

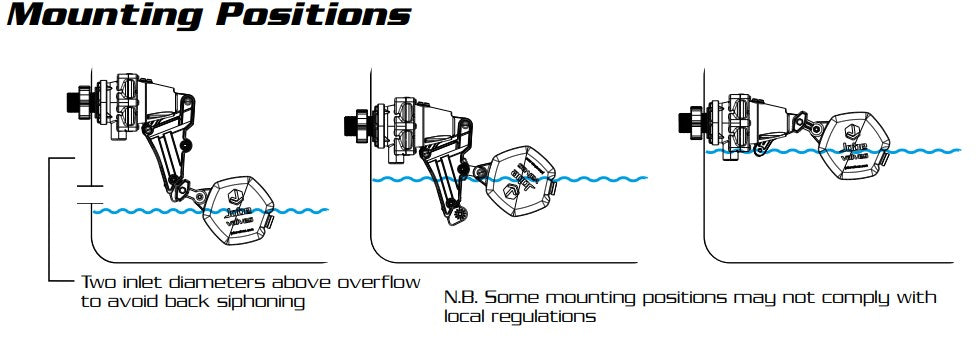

The Topaz compact float valve is a float operated valves for use in the automatic filling of water troughs, tanks & cisterns where space is limited. The valve is configured for above water mounting only. The compact weighted float operates a small pilot valve which in turn operates the main diaphragm valve. Topaz Compact float valves are positive on/off and are ideal when working with pump supplied water in a small compartment.

Applications
Maintaining Water Levels in:
• Animal Drinking Troughs
• Water Storage Tanks
• Water Cisterns
• Air Conditioning Systems
• High Pressure Cleaning Systems
• Irrigation Applications

Features
• Compact Weighted Float
• High flow
• Compact robust construction
• Made from corrosion resistant materials
• Shuts down slowly to minimize water hammer
• 20 - 60mm (¾" - 2 ½") water level differential (increases as water inlet pressure increases)
• Pressure rating 0.3 - 10 Bar (5 - 150 PSI)
• Float position easily adjustable with no tools
• Valve has switch to lock it in off position
• Has port to connect Frostpro anti freeze device
• Detach™ Valve Seal Access System for quick access to valve seal

Long Tail VS Short Tail:

The Key Difference between long and short tail is the amount of thread available to attach to your plumbing. Another important distinction is that short tail valves do not include a backing nut and seal washer. For more information please review this post.

Selecting the right inlet size:

Selecting the right size inlet is very important to the performance of your float valve. The inlet of the float valve should match your supply plumbing. For instance if your supply plumbing is 3/4" you will get no better performance from a 1" valve. Your flow rate will always be limited by the smallest pipe. Always match your float valve inlet size to your water supply pipe size. If you intend on upgrading your water supply plumbing at some point you can always purchase a different Detach tail. For more information on Jobe Valves Detach tails visit the links below.

Detach Short Tail.

Detach Long Tail.

Warranty information
Jobe valves will replace or repair product that fails due to faulty parts or manufacturing for 2 years from dated proof of purchase. Jobe Valves does not accept any liability whatsoever for any consequential damage caused, or associated costs involved, in the malfunction or in the replacing or repairing of any Jobe product.

For more information on the Jobe Valves Topaz Compact float valve you can review the Information sheet here.

To see the entire Jobe Valves Topaz product family click here.
