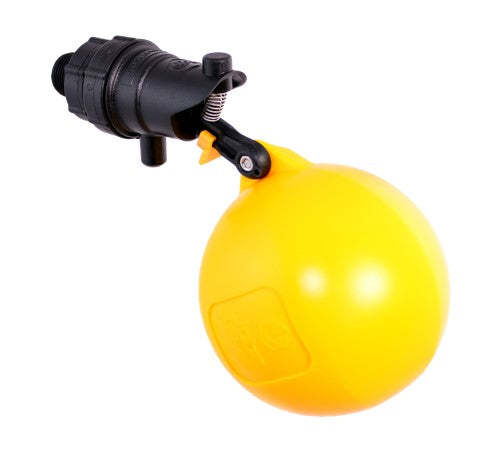

Jobe Rojo Float Valve: A small float valve with BIG features
Key Features:
- Float-operated: Automatically regulates water level.

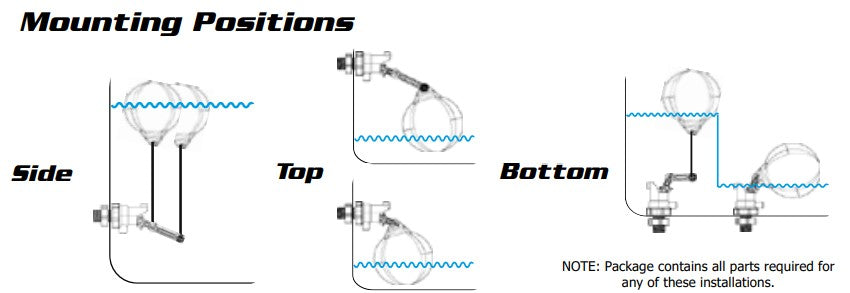

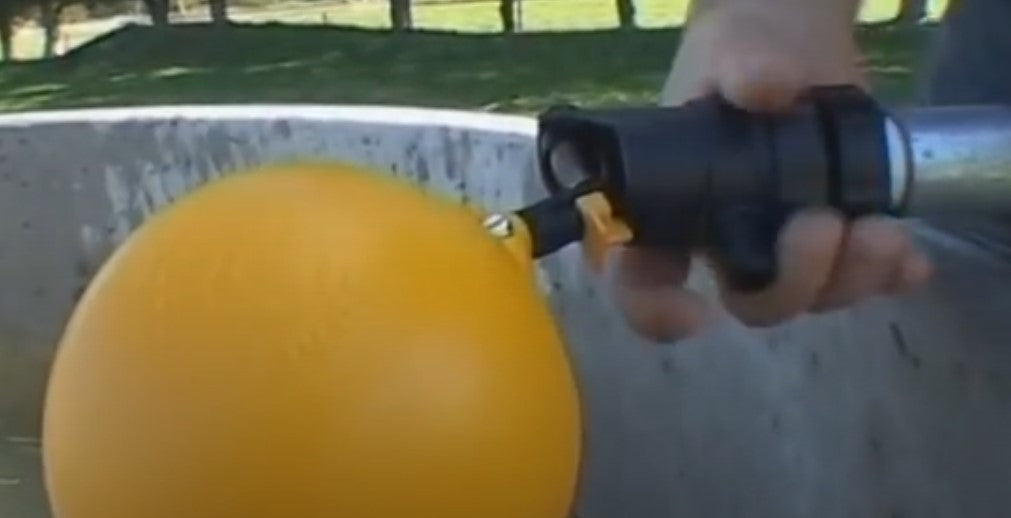

- Versatile mounting: Can be installed above or below water level.
- Low flow: Ideal for systems with moderate water demands. (Higher Flow Valve Available)
- Compact design: Easy to install and maintain.
- Durable construction: Built to last.
- Built-in check valve: To perform float valve maintenance without turning off water supply

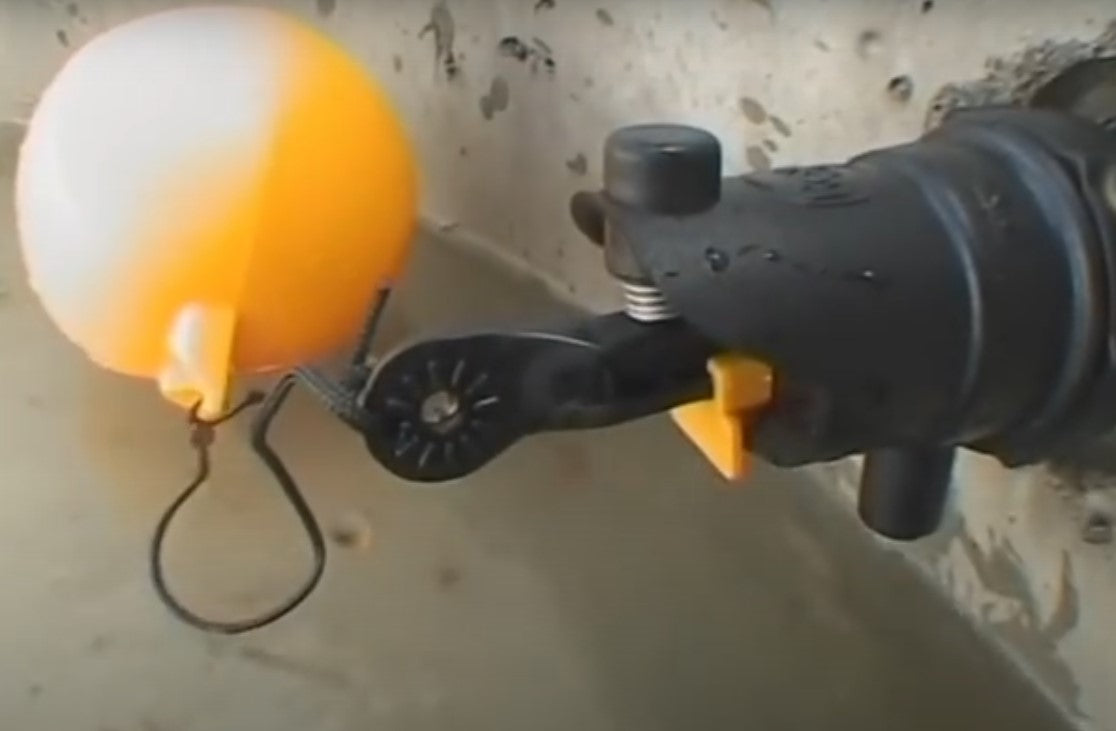

- Lock OFF Switch: Used to turn off water while performing tank maintenance without turning off water supply.

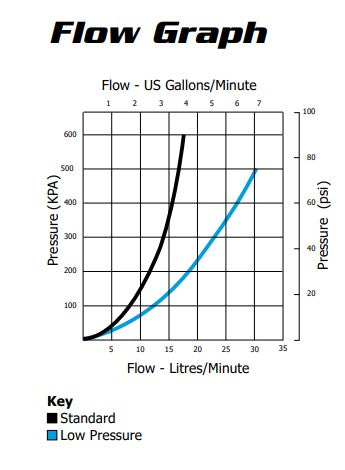

- Great Flow Rate: Up to 4 GPM with the standard valve and up to 7 GPM with High Flow Valve.
Installation and Maintenance Tips
While the Jobe Rojo float valve is generally straightforward to install, here are some tips for optimal performance:
- Choose the right location: Select a spot where the valve can move freely without obstructions.
- Proper installation: Follow the manufacturer's instructions carefully.
- Regular inspection: Check for wear and tear, especially the float and sealing components.
- Clean the filter: Remove debris to ensure proper valve function.
- Adjust float height: Fine-tune the water level as needed.
Common Applications
The Jobe Rojo float valve finds its place in numerous settings:
- Livestock watering systems: Maintaining consistent water levels in tanks.
- Irrigation systems: Controlling water levels in holding tanks.
- Aquaculture: Maintaining optimal water levels in fish ponds.
Selecting the Right Size Valve

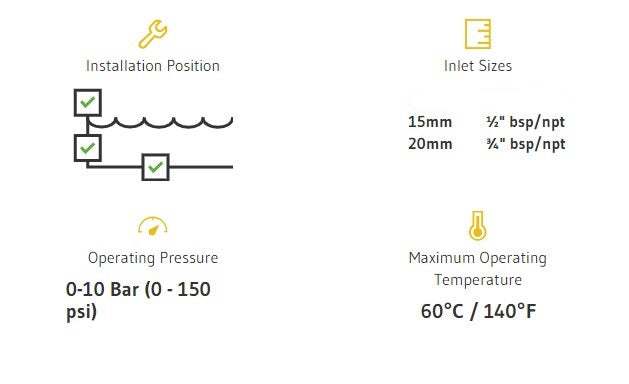

Selecting the right size valve is very important to the performance of your Jobe Rojo float valve. The inlet of the float valve should match your supply plumbing. For instance if your water supply plumbing is 1/2 inch you will get no better performance from a 3/4 inch valve than your 1/2 water supply plumbing can provide. Your flow rate will always be limited by the smallest pipe. Always match your valve inlet size to your water supply pipe size. If you intend on upgrading your water supply plumbing at some point you can always purchase a different tail here to upgrade your ROJO float valve from 1/2 inch up to 3/4 inch. Please note the maximum inlet size for a Jobe ROJO float valve is 3/4 inch, if you have a larger water supply line you will want to utilize a different product from the Jobe Valves lineup.
Conclusion
The Jobe Rojo float valve is a dependable choice for various water storage needs. Its simplicity, durability, and ease of use make it a popular option among homeowners, farmers, and Industry alike. By understanding its features and following proper installation and maintenance practices, you can maximize its performance and reliability.
Warranty information
Jobe Valves will replace or repair product that fails due to faulty parts or manufacturing for 2 years from dated proof of purchase. Jobe Valves does not accept any liability whatsoever for any consequential damage caused, or associated costs involved, in the malfunction or in the replacing or repairing of any Jobe product.
